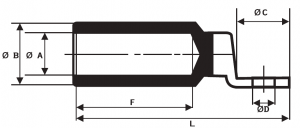

Bi-Metal Lugs
Material Specifications:
Copper Palm: High-purity copper (≥99.9%).
Aluminium Barrel: High-purity aluminium (≥99.5%).
Application : For use on Aluminium conductor with stranded cores L.V and M.V networks up to 36KV.
Installation : Hexagonal Crimping or Deep Indent method.
Friction Welded bonding process that creates a strong and durable connection between the copper and aluminium.
Friction Welded bonding process that creates a strong and durable connection between the copper and aluminium.
To avoid oxidization
of the aluminium barrels capped and greased. When crimping, it forces the joint compound into conductor
strands.
Application: Suitable for connecting aluminium cables to copper busbars or other copper components in electrical equipment.
Standards: IEC 61238-1. .
